PureFuels/GeoDry Fuel Mission Critical Polishing Equipment

What is PureFuels?

PureFuels is a Trade Name For Lakeside’s Mission Critical Fuel Polishing Systems

  • Ultra Clean Diesel to ISO 4406 12/9/6 Results in a Single Pass
  • Uses Proprietary Filter Cartridges to Purify Fuels and Oils to Equal to and Less Than ISO 4406 12/9/6
  • Flow Rates 2 GPM to 280 GPM
  • Incorporates the GeoDry Separator for SAE J1488_2010 Results When Applicable

What is GeoDry?

GeoDry is a Patented Filter Separator for Mission Critical Applications

  • Certified SAE J1488_2010 Flow Rates up to 15 GPM
  • Water Removal Certified SAE J1488_2010 Dry Diesel Pure Single Pass
  • Ultra Clean Diesel to ISO 4406 12/9/6 Diesel Pure Single Pass
  • Additional Flow Rates Up to 280GPM with SAE J1488_2010 Similar Results
Table of Contents
Printable PureFuels Literature



FPS-UL (Full Sized 4 Stage w/ UL Pumps)
FPS-M (Scaled Down 3 Stage)
FPS-P2 (2 Stage Panel / Wall Mountable)
FPS-C2 (2 Stage Rolling Carts)
FPS-C3 (3 Stage Rolling Carts)
FPS-C4 (4 Stage Rolling Carts)
FPS-S4 (4 Stage Skids) (no pumps)
FPS-PS (4 Stage Pump Skids)

GDHF-150NTP-35G-3M-J1488
GoeDry Diesel Coalescer
GoeDry Diesel Coalescer

• Diesel fuel coalescing filter for dispensing or polishing filtration applications up to 35 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry element technology which exceed SAEJ1488 requirements

Filter Assembly #7645495

Flow Rating: Up to 35 gpm
Max. Operating Pressure: 150 psi
Min. Yield: 1189 psi
Temp. Range: 32º to 225ºF (No Heater)
Bypass Setting: 40 psi
Head/Port: Cast Aluminum
Element Case: Anodized Aluminum
Sump: Anodized Aluminum
Element Change Clearance: 4.5” Min.

SAP #7645509
Spare Element – GDF-35G-1M-J1488

GDHF-MAN-70G-1M

• Diesel fuel coalescing filter for dispensing or polishing filtration applications up to 70 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry element technology which exceed SAEJ1488 requirement

Filter Assembly #7645498

Flow Rating: Up to 70 gpm
Max. Operating Pressure: 70 psi
Min. Yield: 400 psi
Temp. Range: 32º to 165ºF (No Heater)
Bypass Setting: 30 psi
Base Port: Cast Aluminum
Element Case: Aluminum w/ Epoxy Paint Electroless Nickel Plating
Sump: Anodized Aluminum
Cap: Nickel Coated Ductile Iron
Element Change Clearance: 34” Min.

SAP #7645514
Spare Element – GDF-70G-1M

GDHF-600-2.5G-1M-J1488

GeoDry Direct to Tank 2.5 GPM Filter Separator.

 This can be installed to circulate the product in the tank or in-line to the generator.

 This has an optional heater, auto water drain and pump to form an all in one unit.

 Installed directly to the generator enclosure or any  permanent wall.

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Analysis Unit #GDHF60024

Add Optional

Internal 2.5GPM Pump

Internal Heater

Internal Auto Water Drain

PFHF-150NPT-100G-1M
PureFuels Fuel Filter
PureFuels Fuel Filter

• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 100 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary PureFuel element technology which exceed SAEJ1488 requirements

Filter Assembly #7645494

Flow Rating: Up to 100 gpm

Max. Operating Pressure: 150 psi

Min. Yield: 2600 psi

Temp. Range: -20º to 225ºF (No Heater)

Bypass Setting: 40 psi

Head/Port: Cast Aluminum

Element Case: Anodized Aluminum

Element Change Clearance: 2” Min.

Element Filtration Ratio per ISO 16889

(Using APC Calibrated per ISO 11171)

SAP #7645510
Spare Element – PFF-100G-1M

PFHF-100NPT-6IN-35G-3M

• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 35 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary PureFuels element technology which exceed SAEJ1488 requirements

Filter Assembly #7645496

Flow Rating: Up to 35 gpm

Max. Operating Pressure: 725 psi

Min. Yield: 2600 psi

Temp. Range: -20º to 225ºF

Bypass Setting: 25 psi

Head/Port: Cast Aluminum

Element Case: Anodized Aluminum

Element Change Clearance: 2” Min.

Element Filtration Ratio per ISO 16889

(Using APC Calibrated per ISO 11171)

SAP #7645511
Spare Element – PFF-6IN-35G-3M

PFHF-100NPT-9IN-35G-3M

• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 35 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary PureFuels element technology which exceed SAEJ1488 requirements

Filter Assembly #7645497

Flow Rating: Up to 35 gpm

Max. Operating Pressure: 725 psi

Min. Yield: 2600 psi

Temp. Range: -20º to 225ºF

Bypass Setting: 25 psi

Head/Port: Cast Aluminum

Element Case: Anodized Aluminum

Element Change Clearance: 2” Min.

Element Filtration Ratio per ISO 16889

(Using APC Calibrated per ISO 11171)

SAP #7645512
Spare Element – PFF-9IN-35G-3M

PFHF-MAN-400G-1M

• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 400 GPM

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary PureFuel element technology which exceed SAEJ1488 requirements

Filter Assembly #7645499

Flow Rating: Up to 400 gpm

Max. Operating Pressure: 100 psi

Min. Yield: 400 psi

Temp. Range: -20º to 225ºF (No Heater)

Bypass Setting: 30 psi

Base Port: Anodized Aluminum

Element Case: Aluminum w/ Epoxy Paint Electroless Nickel Plating

Cap: Nickel Coated Ductile Iron

Element Change Clearance: 36” Min.

Element Filtration Ratio per ISO 16889

(Using APC Calibrated per ISO 11171)

SAP #7645513
Spare Element – PFF-400G-3M

PP2-GDHF-14G-1M-J1488-1PH-115VAC

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #7645500

Flow Rating: 14 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

GeoDry Spare Element #7645509
GDF-35G-1M-J1488

PP2-GDHF-25G-1M-J1488-1PH-115VAC

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 25gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #7645501

Flow Rating: 25 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum

GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

GeoDry Spare Element #7645509
GDF-35G-1M-J148825

FPS-M-14UL-J1488

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #76455XX

Flow Rating: 14 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

SAP #7645512
Spare Element – PFF-9IN-35G-3M

FPS-14UL-J1488

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #76455XX

Flow Rating: 14 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

SAP #7645512
Spare Element – PFF-9IN-35G-3M

FPS-20-J1488

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 20gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #7645501

Flow Rating: 20 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum

GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

SAP #7645512
Spare Element – PFF-9IN-35G-3M

GDHF-S4-210

• Diesel fuel skid with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 210 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuels element technology which exceed SAE-J1488 requirements

Panel Assembly #7645501

Flow Rating: 210 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum

GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

PureFuels Spare Element #7645513

PFF-400G-3M

GeoDry Spare Element #7645514
(3) GDF-70G-1M

GDHF-PS4-210

• Diesel fuel pump skid with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 210 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuels element technology which exceed SAE-J1488 requirementsskid

Panel Assembly #7645501

Flow Rating: 210 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum

GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 230/460 VAC (60HZ)

Service Factor Amp: 19.2A @460VAC

PureFuels Spare Element #7645513
PFF-400G-3M

GeoDry Spare Element #7645514
(3) GDF-70G-1M

PC2-GDHF-14G-1M-J1488-1PH-115VAC

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #76455XX

Flow Rating: 14 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

GeoDry Spare Element #7645509
GDF-35G-1M-J1488

PC2-GDHF-25G-1M-J1488-1PH-115VAC

• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 25gpm

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Panel Assembly #76455XX

Flow Rating: 25 gpm

Temp. Range: 32º to 225ºF (No Heater)

Bypass Indication GDHF & PFHF: 35 psi

Bypass Cracking GDHF & PFHF: 40 psi

GDHF & PFHF Head/Port: Cast Aluminum

GDHF & PFHF Element Case: Anodized Aluminum

GDHF Sump: Anodized Aluminum

PFHF Element Change Clearance: 2” Min.

GDHF Element Change Clearance: 4.5” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ)

Service Factor Amp: 15.2A @115VAC

PureFuel Spare Element #7645510
PFF-100G-1M

GeoDry Spare Element #7645509
GDF-35G-1M-J148825

PC3-PFHF-25G-3M-1PH-115VAC

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single pass removal of emulsified and free-water), and pump motor combo 25 gpm (115V Single Phase)

• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks

• Aluminum filter housings are fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645502

Flow Rating: 25 gpm

Temp. Range: 32º to 150ºF (No Heater)

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element ChangeClearance: 34” Min.

Full Load Motor Amps: 13.4A

Motor Voltage (Frequency): 115 VAC (60HZ) – Single Phase w/ 7’ Power Cord

Service Factor Amp: 15.2A @ 115 VAC

PureFuels Spare Element #7645513
PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
GDF-70G-1M

PC3-PFHF-70G-3M-1PH-220

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (220V Single Phase)

• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks

• Aluminum filter housings are fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645503

Flow Rating: 70 gpm

Temp. Range: 32º to 150ºF (No Heater)

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element Change Clearance: 34” Min.

13.0 A @ 220V (2x 6.5A – 5 HP Motors)

Motor Voltage (Frequency): 2200 VAC (60 Hz) – 1 Phase

Service Factor Amp: 15.2A @ 220 VAC

PureFuels Spare Element #7645513
PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
GDF-70G-1M

PC3-PFHF-70G-3M-3PH-230

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter ( for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (230V/460V – 3 Phase)

• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks

• Aluminum filter housings are fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645504

Flow Rating: 70 gpm

Temp. Range: 32º to 150ºF (No Heater)

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element Change Clearance: 34” Min.

Full Load Motor Amps: 13.0A 2 230V, 6.5A @ 460V

Motor Voltage (Frequency): 230/460 VAC (60HZ) – 3 Phase

Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)

PureFuels Spare Element #7645513
PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
GDF-70G-1M

PC2-PFHF-70G-1M-3PH-460

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter ( for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (230V/460V – 3 Phase)

• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks

• Aluminum filter housings are fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645505

Flow Rating: 70 gpm

Temp. Range: 32º to 150ºF (No Heater

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element Change Clearance: 34” Min.

Full Load Motor Amps: 13.0A 2 230V, 6.5A @ 460V

Motor Voltage (Frequency): 230/460 VAC (60HZ) – 3 Phase

Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)

PureFuels Spare Element #7645513
PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
GDF-70G-1M

PC2-PFHF-70G-1M-3PH-460

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single-pass removal of emulsified and free water), and pump/motor combo 70 GPM (460v -3 Phase)

• Perfect for kidney loop polishing or single pass transfer of diesel fuel in larger storage tanks

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645506

Flow Rating: 70 gpm

Temp. Range: 32º to 150ºF (No Heater)

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element Change Clearance: 34” Min.

Full Load Motor Amps: 13.0A @ 460V (2x 6.5A – 5 HP Motors)

Motor Voltage (Frequency): 460 VAC (60HZ) – 3 Phase

Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)

PureFuels Spare Element #7645513
(1) PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
(2) GDF-70G-1M14

PC2-PFHF-140G-1M-3PH-460

• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single-pass removal of emulsified and free water), and pump/motor combo 140 GPM (460v -3 Phase)

• Perfect for kidney loop polishing or single pass transfer of diesel fuel in larger storage tanks

• All-aluminum filter housing is fully compatible with diesel and biodiesel blends

• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements

Bulk Diesel Cart #7645506

Flow Rating: 140 gpm

Temp. Range: 32º to 150ºF (No Heater)

Bypass Indication PFHF: 15 psi

GDHF Bypass Indication/Cracking: 25 psi/30 psi

PFHF Bypass Indication/Cracking: 15 psi/20 psi

Porting Base: Anodized Aluminum

Pre-Filter Bag Housing: 304 Stainless

GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating

PFHF Element Change Clearance: 36” Min.

GDHF Element Change Clearance: 34” Min.

Full Load Motor Amps: 13.0A @ 460V (2x 6.5A – 5 HP Motors)

Motor Voltage (Frequency): 460 VAC (60HZ) – 3 Phase

Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)

PureFuels Spare Element #7645513
(1) PFF-400G-3M

PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)

GeoDry Spare Element #7645514
(2) GDF-70G-1M14

Replacement Cartridges - Shop

PureFuels & GeoDry SAE J1488 & ISO4406) Drop Replacement Elements (Form-Fit-Function) for Racor FBO Elements

• Replacement element based upon the Parker FBO Series filters, providing replacements for both particulate and water removal elements in the field.

• The GeoDry SAE J1488 & ISO4406) Coalescing design allows for high efficiency patented coalescing water removal filtration technology to be used within the Parker FBO Series filters found in the field today, providing improvements in water removal efficiency and an improvement in particulate retention and filter element service life.

7644660
PFF-FBO-10G5M (SAE J1488 & ISO4406)
FBO-10 GeoDry 5µ Coalescer Direct Replacement for FBO 60328.
Alternative to <5µ FBO-10 Coalescers.
(FBO 60334, 60355, 60353, 60335, 60329)

7644662
PFF-FBO-10P5M
FBO-10 PureFuels 5µ Particulate Direct Replacement for FBO 60354

7644664
PFF-FBO-10P10M
FBO-10 PureFuels 10µ Particulate Direct Replacement for FBO60354

7644666
PFF-FBO-10P25M
FBO-10 PureFuels 25µ Particulate Direct Replacement for FBO60332

7644661
PFF-FBO-14G5M (SAE J1488 & ISO4406)
FBO-14 GeoDry 5µ Coalescer Direct Replacement for FBO 60337.
Alternative to <5µ FBO-14 Coalescers.
(FBO 60343, 60358, 60356, 60344, 60338)

7644663
PFF-FBO-14P5M
FBO-14 PureFuels 5µ Particulate Direct Replacement for FBO 60340

7644665
PFF-FBO-14P10M
FBO-14 PureFuels 10µ Particulate Direct Replacement for FBO60357

7644667
PFF-FBO-14P25M
FBO-14 PureFuels 25µ Particulate Direct Replacement for FBO60341

TFH (Total Fluid Health)

PureFuels Portable Diesel Analysis Unit

•  Portable Diesel Analysis Unit is a portable service unit, designed to measure and differentiate particulate contamination, as well as determine oil life, relative water content, and temperature.

•  This real-time insight into the health of synthetic, organic, and mineral oils, as well as diesel fuel, helps users make informed decisions with regard to fluid quality and treatment planning.

•  This unit is also available for permanent installation for remote access across cellular networks and can be monitored via our Petro-Net cloud based service and programmed to receive test and email messages on status and alarm cognitions.

PureFuels Portable Diesel
Analysis Unit #7641078

Particle Counter Measuring Range: Maximum ISO Code of 29

Accuracy: ±0.5 ISO Code

Fluid Compatibility: Mineral-based oils, Synthetic oils, Organic oils, Diesel Fuels

Particulate Measurement Standards: ISO 4406 (=4(c) / =6(c) / =14(c) / =21(c) / =38(c) / =70(c) / =100(c)), NAS 1638, SAE AS4059

Weight: 26.5 lbs. (12.0kg)

Inlet Pressure: 36.3 psi (2.5 bar) Max. (5075 psi [350 bar] w/ adapter Sold Separately for pressurized lines)

Permissible Viscosity Range: 1-2400 cSt (1-300 cSt with high pressure adapter)

Operating Temperature: 32ºF to 122ºF

Fluid Temperature Range: 14ºF to 122ºF (diesel fuel)

Pump Type: Gear

Duty Cycle: Continuous

Power Supply Voltage: 115V AC

Nominal Batter Voltage: 15.0V DC

Charge Time: 2 hours (80%) / 5 hours (100%)

PAWM (Particulate and Water Monitoring)

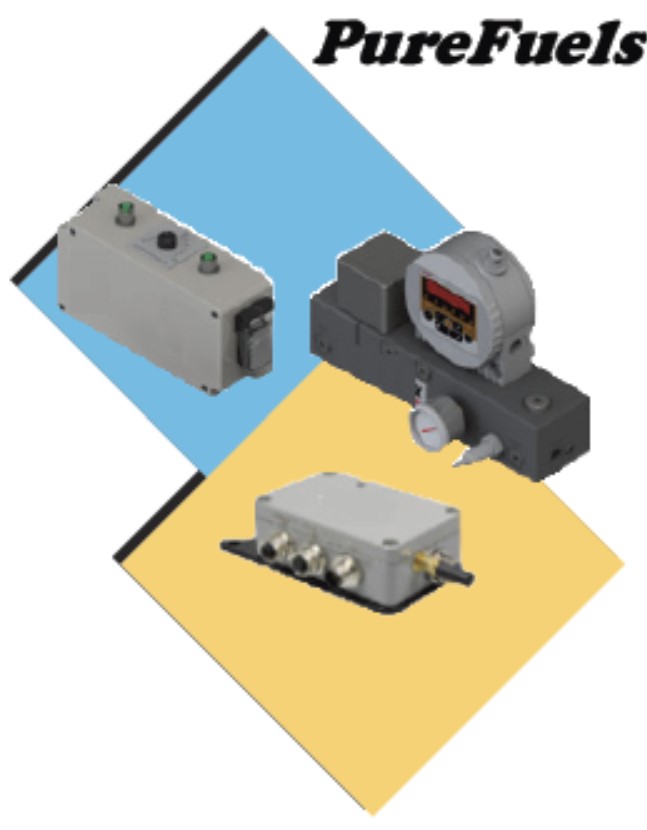

PureFuels Remote Fluid Analysis

Remote Diesel Fuel Particulate and Water Monitoring of Polishing Systems or Tanks

• This data is monitored via the cloud and can provide Digital Alarms notifications via email on any of the monitored parameters. (ISO Code Cleanliness,
Water Saturation, etc.)

• This real-time insight into the health of the diesel fuel, helps users make informed decisions with regards to fluid quality and treatment planning.

Contact Factory with your specific application, and Lakeside Petroleum will provide you with a real-time remote solution.

Analysis Unit #7641078A

Lakeside Petroleum has assembled an innovative package to measure and monitor Diesel Fuel Cleanliness (particulate contamination) as well as determine relative water content.

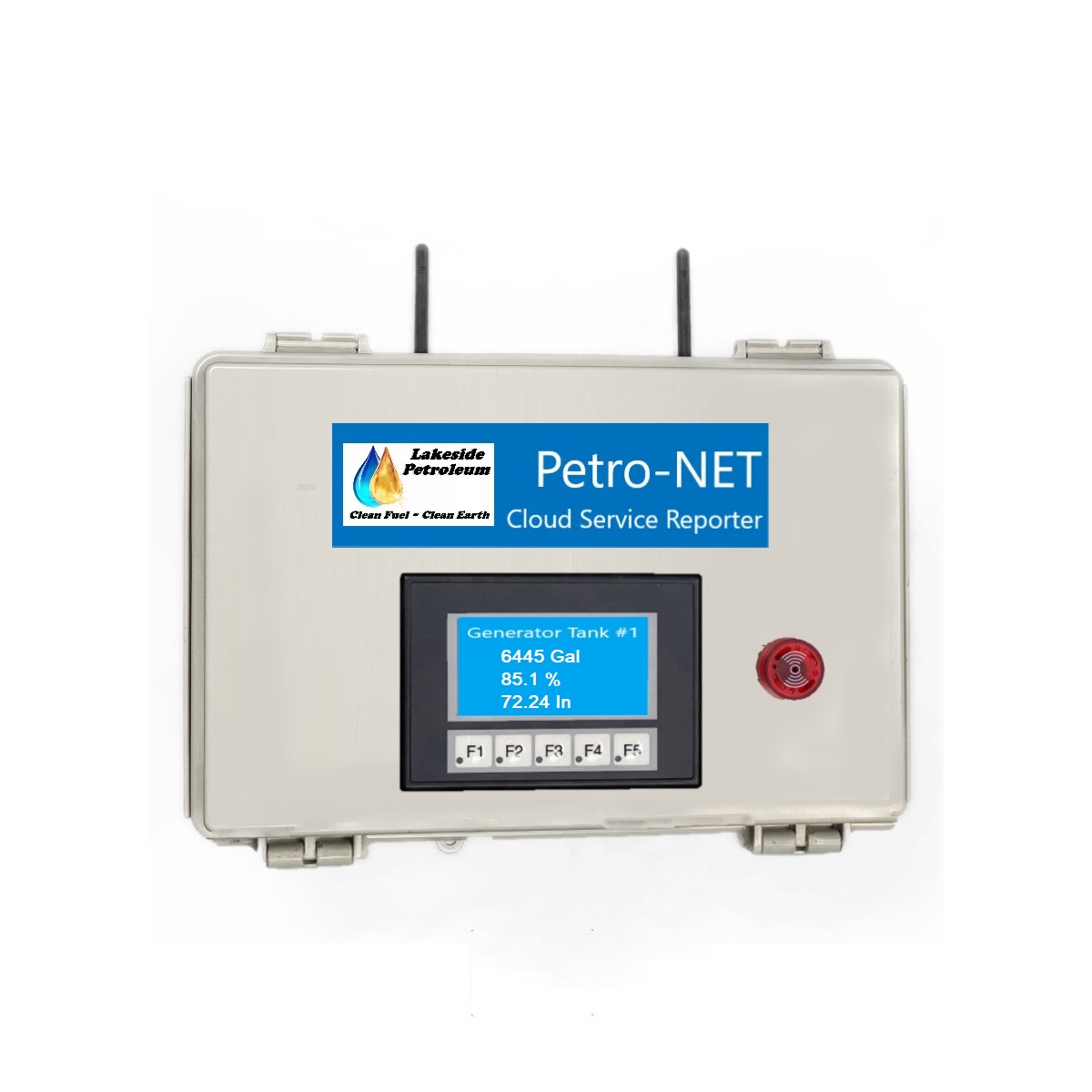

PETRO-NET CLOUD SERVER

Remote Cloud Monitoring

 Add SAE J1488 Saturation Sensor and ISO 4066 Particulate Monitor and receive live results displayed local in your FPS 1P controller, your local network, or are cloud based Petro-Net server.



Remote Cloud Monitoring

PETRONET-CS

For More Information

X
