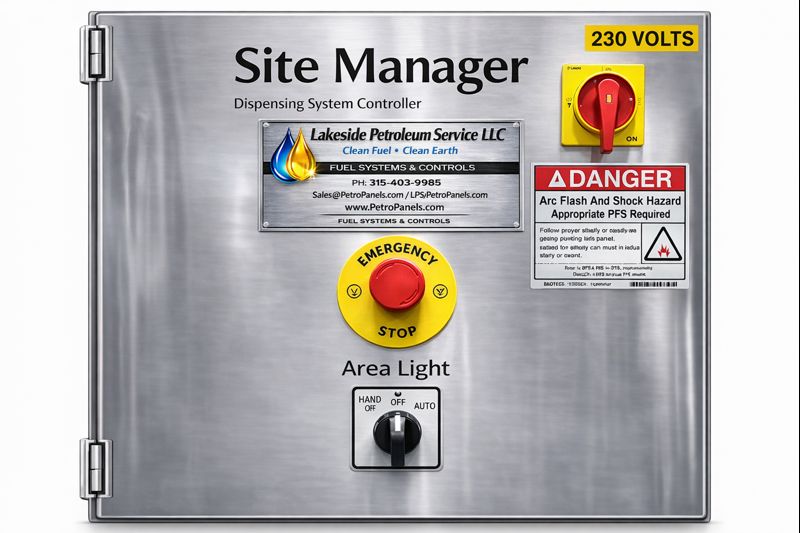

This industrial fuel dispensing control panel is a fully integrated, factory-built solution designed to simplify installation, improve safety, and ensure reliable operation of retail and commercial fueling systems. Housed in a rugged NEMA 4X enclosure, the panel is suitable for outdoor use and harsh, high-corrosion environments.
The system features a single input power connection with a main disconnect, providing centralized power control and simplified site wiring. A panel-mounted emergency stop pushbutton, supervised by a dedicated safety relay, ensures rapid and reliable shutdown of dispensing operations when required.
Dispenser handle (hook) inputs are optically isolated, eliminating electrical feedback between dispensers and control circuits. The panel provides dedicated control and protection circuits for each major system function, including dispenser control, pump starter operation, tank level monitoring, and fire suppression interfaces. An integrated electric anti-siphon solenoid valve control helps prevent unauthorized fuel flow and enhances system security.
Designed as a pre-engineered solution, the panel includes standardized wiring layouts and documentation for most major pump and dispenser manufacturers, reducing installation time and minimizing commissioning risk.
Single input power connection with main power disconnect
NEMA 4X enclosure for outdoor and high-corrosion environments
Dedicated lighting and auxiliary control circuits
Panel-mounted emergency stop pushbutton
Safety relay–supervised shutdown with fail-safe operation
Dedicated fire suppression and emergency shutdown control circuit
Dry contact output for remote emergency stop integration
One dedicated dispenser control and anti-siphon circuit per dispenser
One dedicated submersible pump starter control and overload protection circuit per pump
Integrated electric anti-siphon solenoid valve control
Optical isolation of dispenser handle inputs to prevent feedback or cross-coupling
Dedicated fuel management control circuit
Dedicated tank level gauge circuit
Clean separation of power and control functions for reliable operation
Pre-engineered wiring diagrams available for virtually all major pumps and dispensers
Clear terminal labeling and organized internal layout
Designed for fast installation, troubleshooting, and future expansion
This control panel is engineered with safety as a core design principle. From optically isolated dispenser inputs and safety relay-controlled emergency shutdowns to dedicated circuits for critical functions, every aspect of the system is designed to reduce risk and improve operational reliability. The result is a robust, field-proven solution that supports safe fueling operations while simplifying installation and long-term maintenance.
Power Requirements:
Power input as specified under Power Options.
Circuit Protection:
All branch circuits utilize switched neutral circuit breakers.
Emergency Stop Function:
Emergency stop operation disconnects all power, including all ungrounded (hot) and grounded (neutral) conductors, to affected circuits.
Safety Relay:
Integrated industrial safety relay providing supervised emergency stop control with fail-safe operation.
Fail-Safe Design:
Emergency stop circuits are de-energize-to-trip, ensuring loss of control power results in a safe shutdown condition.
Handle / Hook Inputs:
Dispenser handle (hook) inputs are optically isolated to prevent cross-coupling, backfeed, or voltage migration between dispenser equipment and control circuitry.
Control Voltage Isolation:
High-voltage and low-voltage circuits are electrically isolated in accordance with applicable codes.
Enclosure Rating:
NEMA 4X, suitable for:
Outdoor installations
High-corrosion environments
Wash-down and marine applications
Panel Listing:
UL 508A Listed industrial control panel.
Electrical Code Compliance:
Designed and constructed in accordance with NEC (NFPA 70).
Motor Fuel Dispensing:
Meets NFPA 30A requirements.
Hazardous Location Suitability:
Suitable for installation in Class I, Division 2, Groups B, C, and D, when installed per NEC and AHJ requirements.
High Voltage Circuits:
Fully compliant with NEC Article 514 requirements.
Low Voltage Circuits (Optional):
Low-voltage control circuits designed to comply with NEC Article 514 separation and wiring requirements.
• Diesel fuel coalescing filter for dispensing or polishing filtration applications up to 70 GPM
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry element technology which exceed SAEJ1488 requirement
Filter Assembly #7645498
Flow Rating: Up to 70 gpm
Max. Operating Pressure: 70 psi
Min. Yield: 400 psi
Temp. Range: 32º to 165ºF (No Heater)
Bypass Setting: 30 psi
Base Port: Cast Aluminum
Element Case: Aluminum w/ Epoxy Paint Electroless Nickel Plating
Sump: Anodized Aluminum
Cap: Nickel Coated Ductile Iron
Element Change Clearance: 34” Min.
SAP #7645514
Spare Element – GDF-70G-1M
GeoDry Direct to Tank 2.5 GPM Filter Separator.
• This can be installed to circulate the product in the tank or in-line to the generator.
• This has an optional heater, auto water drain and pump to form an all in one unit.
• Installed directly to the generator enclosure or any permanent wall.
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Analysis Unit #GDHF60024
Add Optional
Internal 2.5GPM Pump
Internal Heater
Internal Auto Water Drain
• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 100 GPM
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary PureFuel element technology which exceed SAEJ1488 requirements
Filter Assembly #7645494
Flow Rating: Up to 100 gpm
Max. Operating Pressure: 150 psi
Min. Yield: 2600 psi
Temp. Range: -20º to 225ºF (No Heater)
Bypass Setting: 40 psi
Head/Port: Cast Aluminum
Element Case: Anodized Aluminum
Element Change Clearance: 2” Min.
Element Filtration Ratio per ISO 16889
(Using APC Calibrated per ISO 11171)
SAP #7645510
Spare Element – PFF-100G-1M
• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 35 GPM
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary PureFuels element technology which exceed SAEJ1488 requirements
Filter Assembly #7645496
Flow Rating: Up to 35 gpm
Max. Operating Pressure: 725 psi
Min. Yield: 2600 psi
Temp. Range: -20º to 225ºF
Bypass Setting: 25 psi
Head/Port: Cast Aluminum
Element Case: Anodized Aluminum
Element Change Clearance: 2” Min.
Element Filtration Ratio per ISO 16889
(Using APC Calibrated per ISO 11171)
SAP #7645511
Spare Element – PFF-6IN-35G-3M
• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 35 GPM
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary PureFuels element technology which exceed SAEJ1488 requirements
Filter Assembly #7645497
Flow Rating: Up to 35 gpm
Max. Operating Pressure: 725 psi
Min. Yield: 2600 psi
Temp. Range: -20º to 225ºF
Bypass Setting: 25 psi
Head/Port: Cast Aluminum
Element Case: Anodized Aluminum
Element Change Clearance: 2” Min.
Element Filtration Ratio per ISO 16889
(Using APC Calibrated per ISO 11171)
SAP #7645512
Spare Element – PFF-9IN-35G-3M
• Diesel fuel particulate filter for dispensing or polishing filtration applications up to 400 GPM
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary PureFuel element technology which exceed SAEJ1488 requirements
Filter Assembly #7645499
Flow Rating: Up to 400 gpm
Max. Operating Pressure: 100 psi
Min. Yield: 400 psi
Temp. Range: -20º to 225ºF (No Heater)
Bypass Setting: 30 psi
Base Port: Anodized Aluminum
Element Case: Aluminum w/ Epoxy Paint Electroless Nickel Plating
Cap: Nickel Coated Ductile Iron
Element Change Clearance: 36” Min.
Element Filtration Ratio per ISO 16889
(Using APC Calibrated per ISO 11171)
SAP #7645513
Spare Element – PFF-400G-3M
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #7645500
Flow Rating: 14 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
GeoDry Spare Element #7645509
GDF-35G-1M-J1488
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 25gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #7645501
Flow Rating: 25 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
GeoDry Spare Element #7645509
GDF-35G-1M-J148825
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #76455XX
Flow Rating: 14 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
SAP #7645512
Spare Element – PFF-9IN-35G-3M
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #76455XX
Flow Rating: 14 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
SAP #7645512
Spare Element – PFF-9IN-35G-3M
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 20gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #7645501
Flow Rating: 20 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
SAP #7645512
Spare Element – PFF-9IN-35G-3M
• Diesel fuel skid with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 210 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuels element technology which exceed SAE-J1488 requirements
Panel Assembly #7645501
Flow Rating: 210 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
PureFuels Spare Element #7645513
PFF-400G-3M
GeoDry Spare Element #7645514
(3) GDF-70G-1M
• Diesel fuel pump skid with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 210 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuels element technology which exceed SAE-J1488 requirementsskid
Panel Assembly #7645501
Flow Rating: 210 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 230/460 VAC (60HZ)
Service Factor Amp: 19.2A @460VAC
PureFuels Spare Element #7645513
PFF-400G-3M
GeoDry Spare Element #7645514
(3) GDF-70G-1M
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 14 gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #76455XX
Flow Rating: 14 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
GeoDry Spare Element #7645509
GDF-35G-1M-J1488
• Diesel fuel panel with particulate filter, coalescing filter, and pump/motor combo for dispensing or polishing filtration applications 25gpm
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Panel Assembly #76455XX
Flow Rating: 25 gpm
Temp. Range: 32º to 225ºF (No Heater)
Bypass Indication GDHF & PFHF: 35 psi
Bypass Cracking GDHF & PFHF: 40 psi
GDHF & PFHF Head/Port: Cast Aluminum
GDHF & PFHF Element Case: Anodized Aluminum
GDHF Sump: Anodized Aluminum
PFHF Element Change Clearance: 2” Min.
GDHF Element Change Clearance: 4.5” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ)
Service Factor Amp: 15.2A @115VAC
PureFuel Spare Element #7645510
PFF-100G-1M
GeoDry Spare Element #7645509
GDF-35G-1M-J148825
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single pass removal of emulsified and free-water), and pump motor combo 25 gpm (115V Single Phase)
• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks
• Aluminum filter housings are fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645502
Flow Rating: 25 gpm
Temp. Range: 32º to 150ºF (No Heater)
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element ChangeClearance: 34” Min.
Full Load Motor Amps: 13.4A
Motor Voltage (Frequency): 115 VAC (60HZ) – Single Phase w/ 7’ Power Cord
Service Factor Amp: 15.2A @ 115 VAC
PureFuels Spare Element #7645513
PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
GDF-70G-1M
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (220V Single Phase)
• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks
• Aluminum filter housings are fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645503
Flow Rating: 70 gpm
Temp. Range: 32º to 150ºF (No Heater)
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element Change Clearance: 34” Min.
13.0 A @ 220V (2x 6.5A – 5 HP Motors)
Motor Voltage (Frequency): 2200 VAC (60 Hz) – 1 Phase
Service Factor Amp: 15.2A @ 220 VAC
PureFuels Spare Element #7645513
PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
GDF-70G-1M
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter ( for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (230V/460V – 3 Phase)
• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks
• Aluminum filter housings are fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645504
Flow Rating: 70 gpm
Temp. Range: 32º to 150ºF (No Heater)
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element Change Clearance: 34” Min.
Full Load Motor Amps: 13.0A 2 230V, 6.5A @ 460V
Motor Voltage (Frequency): 230/460 VAC (60HZ) – 3 Phase
Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)
PureFuels Spare Element #7645513
PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
GDF-70G-1M
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter ( for single pass removal of emulsified and free-water), and pump motor combo 70 GPM (230V/460V – 3 Phase)
• Perfect for kidney loop polishing or single pass transfer or diesel fuel in larger storage tanks
• Aluminum filter housings are fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645505
Flow Rating: 70 gpm
Temp. Range: 32º to 150ºF (No Heater
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element Change Clearance: 34” Min.
Full Load Motor Amps: 13.0A 2 230V, 6.5A @ 460V
Motor Voltage (Frequency): 230/460 VAC (60HZ) – 3 Phase
Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)
PureFuels Spare Element #7645513
PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
GDF-70G-1M
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single-pass removal of emulsified and free water), and pump/motor combo 70 GPM (460v -3 Phase)
• Perfect for kidney loop polishing or single pass transfer of diesel fuel in larger storage tanks
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645506
Flow Rating: 70 gpm
Temp. Range: 32º to 150ºF (No Heater)
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element Change Clearance: 34” Min.
Full Load Motor Amps: 13.0A @ 460V (2x 6.5A – 5 HP Motors)
Motor Voltage (Frequency): 460 VAC (60HZ) – 3 Phase
Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)
PureFuels Spare Element #7645513
(1) PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
(2) GDF-70G-1M14
• Diesel fuel cart with bag housing pre-filter (for removal of microbial bloom contamination and rust), particulate filter, and high efficiency coalescing filter (for single-pass removal of emulsified and free water), and pump/motor combo 140 GPM (460v -3 Phase)
• Perfect for kidney loop polishing or single pass transfer of diesel fuel in larger storage tanks
• All-aluminum filter housing is fully compatible with diesel and biodiesel blends
• Uses Proprietary GeoDry and PureFuel element technology which exceed SAEJ1488 requirements
Bulk Diesel Cart #7645506
Flow Rating: 140 gpm
Temp. Range: 32º to 150ºF (No Heater)
Bypass Indication PFHF: 15 psi
GDHF Bypass Indication/Cracking: 25 psi/30 psi
PFHF Bypass Indication/Cracking: 15 psi/20 psi
Porting Base: Anodized Aluminum
Pre-Filter Bag Housing: 304 Stainless
GDHF & PFHF: Aluminum w/ Epoxy Paint Electroless Nickel Plating
PFHF Element Change Clearance: 36” Min.
GDHF Element Change Clearance: 34” Min.
Full Load Motor Amps: 13.0A @ 460V (2x 6.5A – 5 HP Motors)
Motor Voltage (Frequency): 460 VAC (60HZ) – 3 Phase
Service Factor Amp: 1.15 SF at 40ºC (104º F) / 1.0 SF at 65º C (149º F)
PureFuels Spare Element #7645513
(1) PFF-400G-3M
PureFuels Spare Bags #7631446
PEF25P2PH – 25µ Polyfelt media (Sold in Qty 50 Only)
GeoDry Spare Element #7645514
(2) GDF-70G-1M14
PureFuels & GeoDry SAE J1488 & ISO4406) Drop Replacement Elements (Form-Fit-Function) for Racor FBO Elements
• Replacement element based upon the Parker FBO Series filters, providing replacements for both particulate and water removal elements in the field.
• The GeoDry SAE J1488 & ISO4406) Coalescing design allows for high efficiency patented coalescing water removal filtration technology to be used within the Parker FBO Series filters found in the field today, providing improvements in water removal efficiency and an improvement in particulate retention and filter element service life.
7644660
PFF-FBO-10G5M (SAE J1488 & ISO4406)
FBO-10 GeoDry 5µ Coalescer Direct Replacement for FBO 60328.
Alternative to <5µ FBO-10 Coalescers.
(FBO 60334, 60355, 60353, 60335, 60329)
7644662
PFF-FBO-10P5M
FBO-10 PureFuels 5µ Particulate Direct Replacement for FBO 60354
7644664
PFF-FBO-10P10M
FBO-10 PureFuels 10µ Particulate Direct Replacement for FBO60354
7644666
PFF-FBO-10P25M
FBO-10 PureFuels 25µ Particulate Direct Replacement for FBO60332
7644661
PFF-FBO-14G5M (SAE J1488 & ISO4406)
FBO-14 GeoDry 5µ Coalescer Direct Replacement for FBO 60337.
Alternative to <5µ FBO-14 Coalescers.
(FBO 60343, 60358, 60356, 60344, 60338)
7644663
PFF-FBO-14P5M
FBO-14 PureFuels 5µ Particulate Direct Replacement for FBO 60340
7644665
PFF-FBO-14P10M
FBO-14 PureFuels 10µ Particulate Direct Replacement for FBO60357
7644667
PFF-FBO-14P25M
FBO-14 PureFuels 25µ Particulate Direct Replacement for FBO60341
PureFuels Portable Diesel Analysis Unit
• Portable Diesel Analysis Unit is a portable service unit, designed to measure and differentiate particulate contamination, as well as determine oil life, relative water content, and temperature.
• This real-time insight into the health of synthetic, organic, and mineral oils, as well as diesel fuel, helps users make informed decisions with regard to fluid quality and treatment planning.
• This unit is also available for permanent installation for remote access across cellular networks and can be monitored via our Petro-Net cloud based service and programmed to receive test and email messages on status and alarm cognitions.
PureFuels Portable Diesel
Analysis Unit #7641078
Particle Counter Measuring Range: Maximum ISO Code of 29
Accuracy: ±0.5 ISO Code
Fluid Compatibility: Mineral-based oils, Synthetic oils, Organic oils, Diesel Fuels
Particulate Measurement Standards: ISO 4406 (=4(c) / =6(c) / =14(c) / =21(c) / =38(c) / =70(c) / =100(c)), NAS 1638, SAE AS4059
Weight: 26.5 lbs. (12.0kg)
Inlet Pressure: 36.3 psi (2.5 bar) Max. (5075 psi [350 bar] w/ adapter Sold Separately for pressurized lines)
Permissible Viscosity Range: 1-2400 cSt (1-300 cSt with high pressure adapter)
Operating Temperature: 32ºF to 122ºF
Fluid Temperature Range: 14ºF to 122ºF (diesel fuel)
Pump Type: Gear
Duty Cycle: Continuous
Power Supply Voltage: 115V AC
Nominal Batter Voltage: 15.0V DC
Charge Time: 2 hours (80%) / 5 hours (100%)
PureFuels Remote Fluid Analysis
Remote Diesel Fuel Particulate and Water Monitoring of Polishing Systems or Tanks
• This data is monitored via the cloud and can provide Digital Alarms notifications via email on any of the monitored parameters. (ISO Code Cleanliness,
Water Saturation, etc.)
• This real-time insight into the health of the diesel fuel, helps users make informed decisions with regards to fluid quality and treatment planning.
Contact Factory with your specific application, and Lakeside Petroleum will provide you with a real-time remote solution.
Analysis Unit #7641078A
Lakeside Petroleum has assembled an innovative package to measure and monitor Diesel Fuel Cleanliness (particulate contamination) as well as determine relative water content.
Remote Cloud Monitoring
• Add SAE J1488 Saturation Sensor and ISO 4066 Particulate Monitor and receive live results displayed local in your FPS 1P controller, your local network, or are cloud based Petro-Net server.
Remote Cloud Monitoring
PETRONET-CS
GDHF-GeoDry-Coalescing-Filter-and-Housing-SAE-J1488
PFHF PureFuels Particulate Filter and Housing ISO 12-9-6 Certified
Literature FPS-14 UL 343-SAE J1488
Drawing FPS-14 UL 343-SAE J1488
Multi Function Controller (MFC)
Filter Replacement (GeoDry and PureFuels)
System Benefits:
With SAE J1985, test results using SAE J1985, SAE J1488_2010 and SAE J905 procedures demonstrate that our filters exceeds the OE specifications in efficiency and contaminant holding capacity. The enhanced performance of our InterBlend media combined with heavy-duty construction make the our system the best choice for protecting fuel systems in new generation engines.
With standard GeoDry & FureFuels filters, fuel is cleaned to 1 micron and the water is removed to SAE J1488_2010 & ISO 4406 12/9/6 in a single pass. SAE J1488_2010 & ISO 4406 12/9/6 results are required for most generator manufacturers to maintain warranty. Most other fuel polishing systems available by our competitors only will clean fuel to 5-30 microns making the generator inline filters do the rest of the cleaning. We clean to 1 micron to ensure the inline filters to the generator stay clean allowing the generator to keep running.
The Filtration/Fuel Polishing System.
The Pump Controls, Includes
Operating status and alarms:
The BMS:
Specifications:
Optional Equipment:
Money Saving Options:
You must be logged in to post a comment.
