Remote Fill Boxes

Recess, Surface or Base Mounted

Surface Mount

Recess Mount

Wall Mount

Base Mount

Tank Mount

Sidewalk Mount

Stainless Steel 316

Stainless Steel 304

Galvanized

Carbon Steel Powder Coated

Dry Disconnects 2″ or 3″

Single or Duel Product

Diesel / Gasoline With Vapor Recovery



High Level Alarm

Digital Gallons/Inches and Percent

Class 2 NEMA 4x Rated

Class 1 Explosionproof

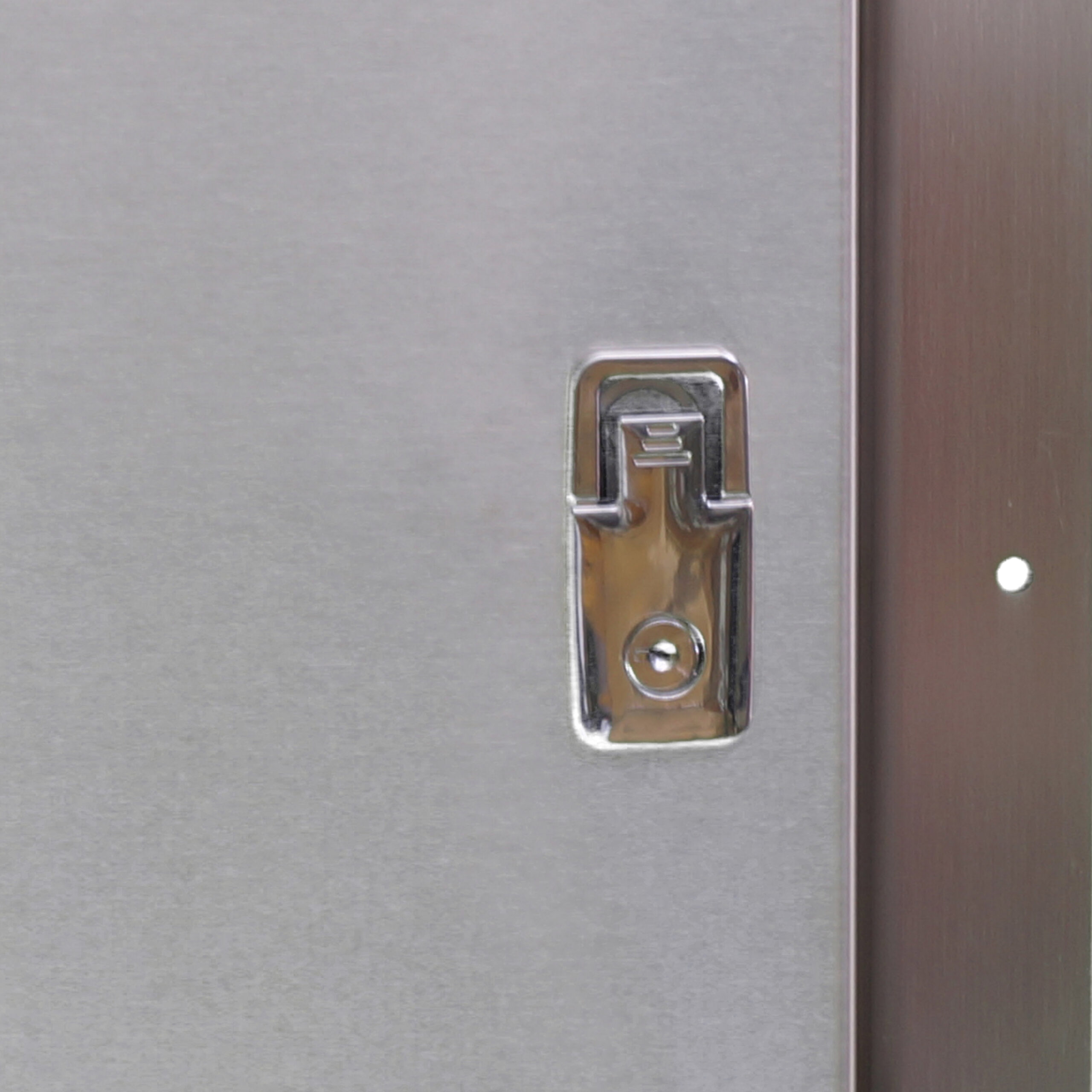

Remote Fill Box RFB flush mount Lockable Latch

Recessed Lockable Door Latch

Remote Fill Box RFB Connections

Connections

Dry Disconnect

Dry Disconnect

Standard Features

7  or 15 gallon (26.49 liter) capacity

Vented and Weatherproof

Hinged door is lockable with a key

Drain located bottom back center

Available with hand pump, ball valve, quick disconnect check valve coupler/adaptor, dry disconnect adaptor, and dust cap/plug in 2″ or 3″ configurations

All connection assemblies are factory installed and tested prior to shipping



Construction Details

Box and door: 304/316 Stainless Steel, Carbon Steel Powder Coated

Ball valve: Apollo series brass or Apollo series stainless steel

Quick disconnect coupler and plug: Aluminum, anodized aluminum, or stainless steel

Quick disconnect adaptor and cap: Anodized aluminum

Dry disconnect adaptor and cap: Aluminum, anodized aluminum, or stainless steel

Hand pump:  Steel construction, PTFE seals with FKM O-rings, or stainless steel with PTFE and FKM

Sizes are available up to 36″ x 42″ x 24″

Available For Single or Duel Products

Code Compliant

CAN-ULC-S663-11; Florida DEP EQ-787 or 15
