GeoDry SAE j1488
Fuel Polishing System Filters
GeoDry and PureFuels Filter and Separator Fuel Polishing
GDHF-150NPT-25G-1M-SAE J1488 - Image 4

GDHF-150NPT-25G-1M-SAE J1488

Print

Original price was: $2,744.00.Current price is: $1,847.00.

Compare
Categories: , Tag:

Description

Diesel fuel coalescing filter for dispensing or polishing filtration applications up to 25 GPM

  • All-aluminum filter housing is fully compatible with diesel and biodiesel blends
  • Proprietary GeoDry element technology which exceed SAE J1488 requirements
  • Water In fuel Sensor to detect the presence of free or separated water
  • Differential Pressure Gauge with a green or red display
  • Water removal drain valve
  • Optional Accessories
    • Sump heater to allow the water not to freeze
    • Temperature Sensor for heater or alarm activation
    • Automatic Water Removal system and holding tank

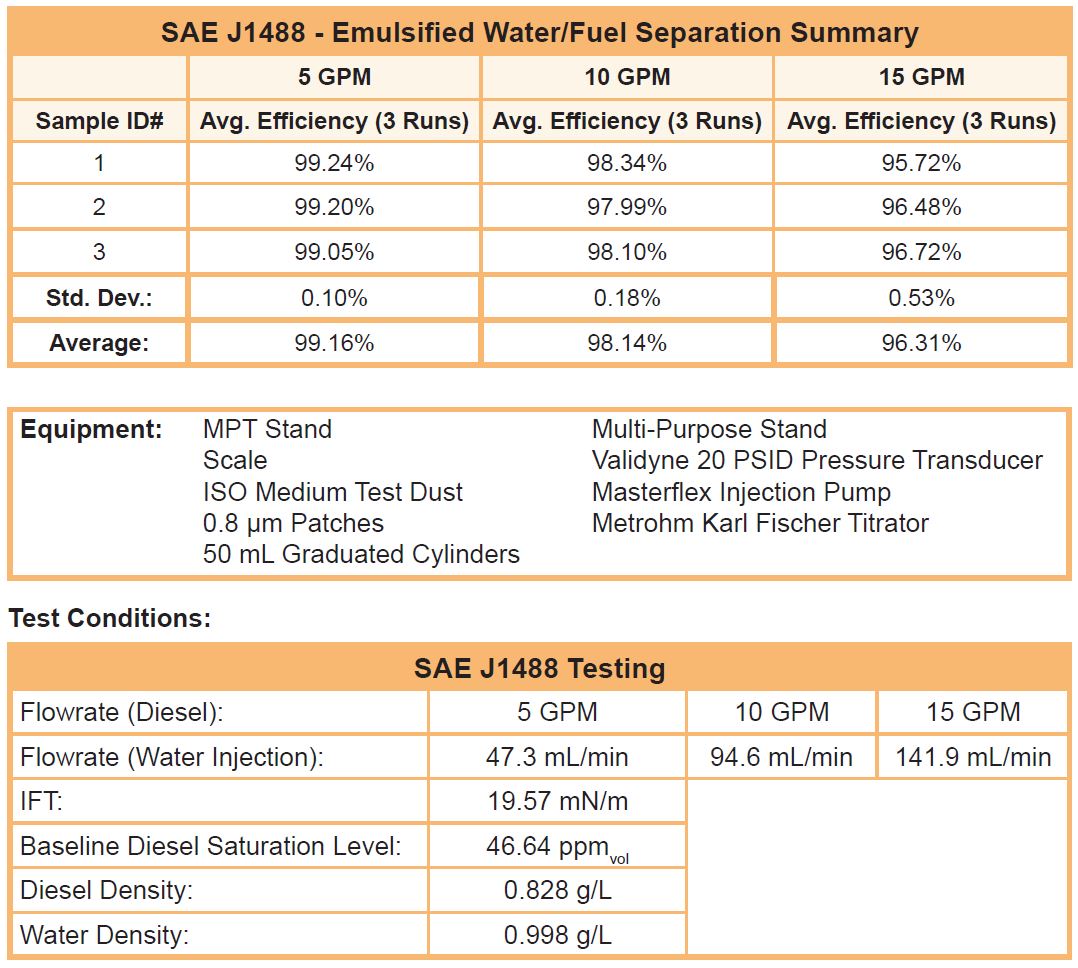

Water Removal Efficiency Tested per SAE J1488
SAE J1488 is a performance test for the effectiveness of fuel/water separators in removing emulsified water from fuels. Ultra-Low Sulfur Diesel (ULSD) is circulated in the stand in a single pass flow loop while de-ionized water is injected upstream of the circulation pump to create the emulsion. Water content in the fuel is recorded upstream and down

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Filter Assembly #7645495Flow Rating: Up to 25 gpm

  • Max. Operating Pressure: 150 psi
  • Min. Yield: 1189 psi




  •



  • Temp. Range: 32º to 225ºF (No Heater)
  • Bypass Setting: 40 psi
  • Head/Port: Cast Aluminum
  • Element Case: Anodized Aluminum
  • Sump: Anodized Aluminum
  • Element Change Clearance: 4.5” Min.





GHCF – GeoSeal® High-Flow Coalescing Filter

Diesel fuel coalescing filter for dispensing, transfer or polishing filtration applications.ses patented GeoSeal® elements.ll-aluminum filter housing is fully compatible with diesel and biodiesel.
