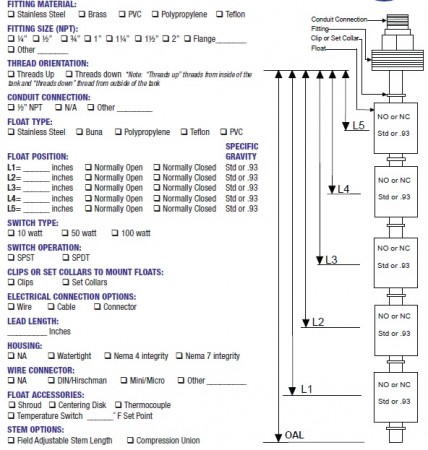

DAY TANK LEVEL SENSOR UP TO 43" TANK - STAINLESS 316 CONTRUCTION
FITTING: 2" NPT, Sq head, Solid, SS
ADJUSTABLE FITTING: SS compression fitting w/Delrin Ferule
- CONDUIT CONNECTION: 1/2" MNPT
- STEM: 1/2" DIA, SS, OAL equals L1 plus
- FLOAT: 1.3" x 1.6" (1513) SS & SS Clips
SWITCH RATING: 20 Watts, SPST (L6 switch is 10 watts SPDT when shared float with L5)
WIRING: 25 ft Cable
L6 _____% ________" Return Pump Start, N.O. Violet and White
- L5 _____% ________" High Level, N.C. Gray (Black common)
- L4 _____% ________" Pump Stop N.C. Orange (Black Common)
- L3 _____% ________" Return Pump Stop, N.O. (Blue and Brown)
- L2 _____% ________" Pump Start, N.O. Yellow (Black Common)
- L1 _____% ________" Low Level, N.O. Red (Black Common)
WIRING CONFIG: L1, L2, L4 & L5 share comm. black wire
- L3 and L6 wired individually
- Note: L5 & L6 share a float when less then 2" separation
- Note: Dimensions are measured at full extension
